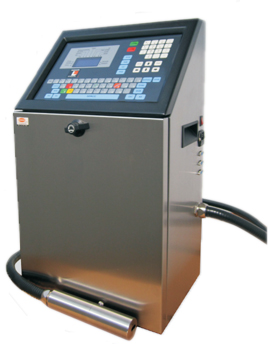

Features | Technical description |
---|---|
Power supply | 220V, 70W, 50Hz |
Symbol matrix | 5x5, 5x7, 6x9, 10x16, 16x24 |
Maximum speed of printing | 1250 characters / sec |
Symbol height | 2-10 mm |
Number of lines | 1-4 |
Number of stored messages | 50 |
Ink base | ketone base/Alcohol |
Speed of ink dry out | 0.5 sec. according to inks |
Reservoir storage capacity | 500ml/500ml |
Real time | hours, minutes, seconds, counter |
Printer weight | 17 kg approx |
Overall dimension of Equipment | 300x230x500hnm |
Printer head dimensions | 180/38mm |
Product sensor input | 12-24 Vdc(N-P-N/P-N-P) |
Length of connecting hose | 2.5 m |
Printers can be easily controlled, create and edit message, suitable forharsh industrial environments. Bulk ink handling system and simple design for easy installation.

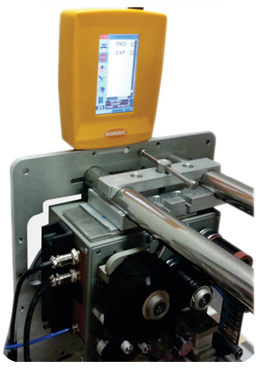

Specifications | ||
---|---|---|
Print Area | EN/AN 321 Width 32mm Length 50mm |
AN 32C Width 32mm Length 125mm |
Resolution | 12 dots/mm (300dpi) | |
Print Speed | Up to 400mm/second | 450 mm/second |
Prints per minute | 300 prints/min (in one line) |
400 prints/min (in one line) |
Thermal Ribbon | 600 meter (656 yds.) loaded ribbon | |
Memory | 5000 text memory USB standard | |
Power Supply | 110/220V 50/60 Hz | |
Air Supply | min. 1 bar - max. 4 bar | |
Weight | 5,6 kg | |
Dimensions | 175mm H x 190mm W x 200mm D | |
Outputs | Machine on error (failsafe) - image ready, power on, print per minute etc., | |
Ribbon Widths | 35 mm. Standard Other Dimensio according to the thermal head |
|
Operating Temperature | 5°- 50°C (41° -104°F) | |
Control Panel | 4,3" Touch Screen Panel |
Programming | |
---|---|
Fields | Real DATE/Time. Text, Barcode, 2D Barcodes, Logo, Counter (Serial No), Shift Code, Shape, Currency |
Barcodes | 1 D Barcodes (EAN-13, EAN-8, CODE 128, CODE 39, ITF -2of5, ITF 14, CODABAR UPC-A, UPC-E) 2 D Barcodes (Datamatrix,QR Codes. PDF 41 7, Aztec code, Semacode, Macro PDF 417) |
Maximum speed of printing | M1250 characters / sec |
Communications | RS-232 (PC), LAN, USB Multi-language (12) support standard |
PC Programmes | imprintd Label Program |
